DEEPCOOL PL650D 650 W ATX 3.1 Power Supply – 80 Plus Bronze, PCIe 5.0

Reliable Power for Modern Mid-Range Builds

The DEEPCOOL PL650D is a 650 W, non‑modular power supply delivering dependable performance for mid-range to high-performance desktop systems. Fully compliant with Intel’s ATX 3.1 standard and equipped with a native PCIe 5.0 (12VHPWR) connector, it’s future-proof and ready for the latest GPU demands.

Key Features at a Glance

• 80 Plus Bronze Certification – Optimised for ~85% efficiency under typical 50% load, offering better energy performance and lower running costs.

• Advanced Cooling – Utilises a quiet, reliable 120 mm hydro-bearing fan for effective heat management and whisper-quiet operation.

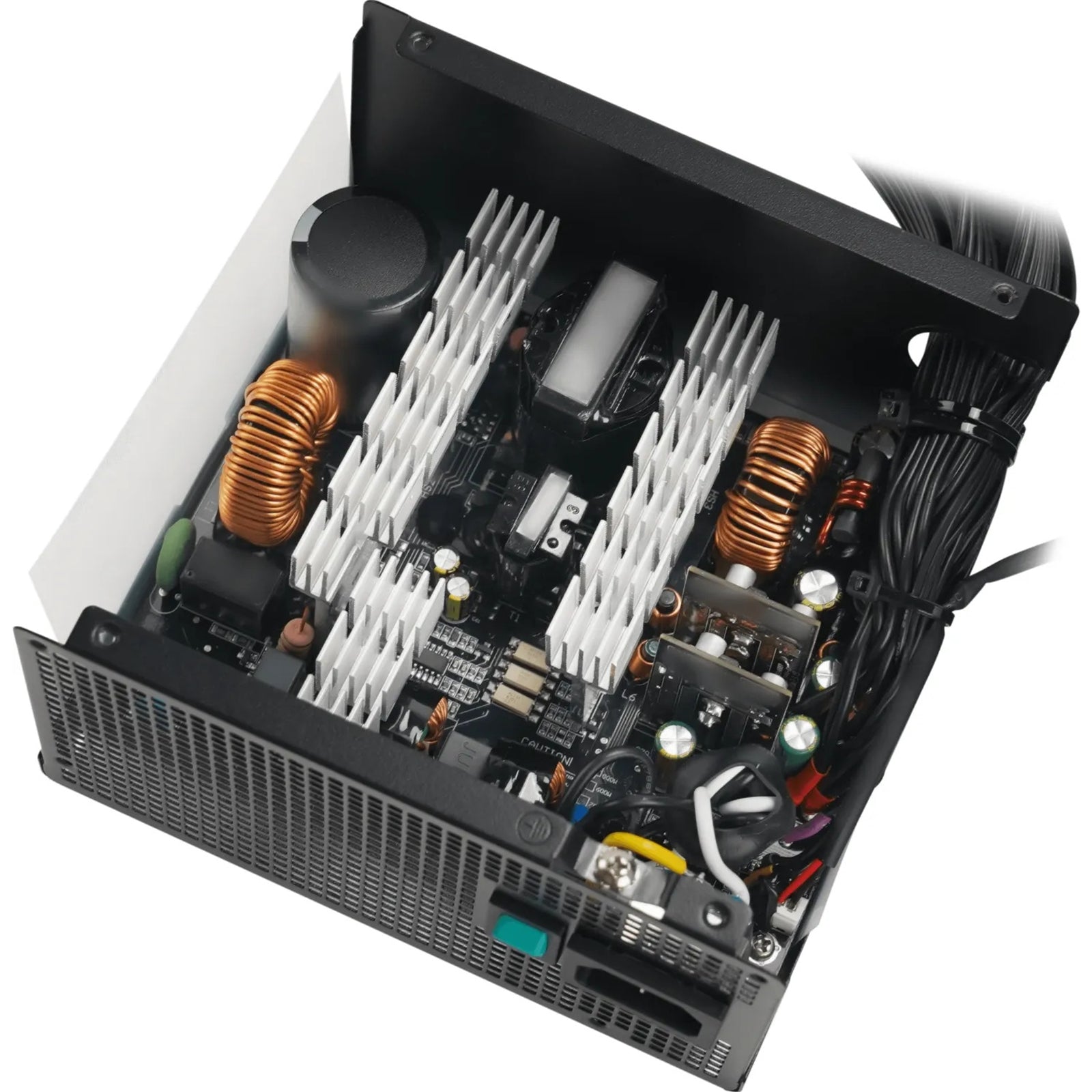

• Robust Build Quality – Built with high-grade electrolytic capacitors and a dual-transistor forward topology for enhanced longevity and performance.

• Connectors You Need:

  • (20+4)‑pin ATX ×1

  • (4+4)‑pin CPU ×2

  • (6+2)‑pin PCI‑E ×3

  • SATA ×3, 4‑pin Peripheral ×1

  • 12VHPWR (16‑pin) ×1 for next-gen GPU

  • Safety & Stability Features – Includes OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO protections, along with Active PFC and DC‑to‑DC architecture.

• Compact & Efficient – Measures just 150 × 140 × 86 mm (W×L×H) and weighs ~1.75 kg.

• Extended 5-Year Warranty – Trust in DEEPCOOL’s commitment to reliability and support.

Why the PL650D Stands Out

• Modern Ready: Ideal for builds using the latest GPUs or future expansions, thanks to its PCIe 5.0 connector and ATX 3.1 compliance.

• Clean and Quiet: The non-modular design eliminates the clutter of loose cables, while the hydro-bearing fan ensures low noise levels.

• Durable and Protected: Premium components and comprehensive safety features mean peace of mind for years.

• UK Trade Distribution: Available via Target Components (Part code PSDEE‑PL650DUK) from a trusted UK-based supplier.

Technical Specifications
