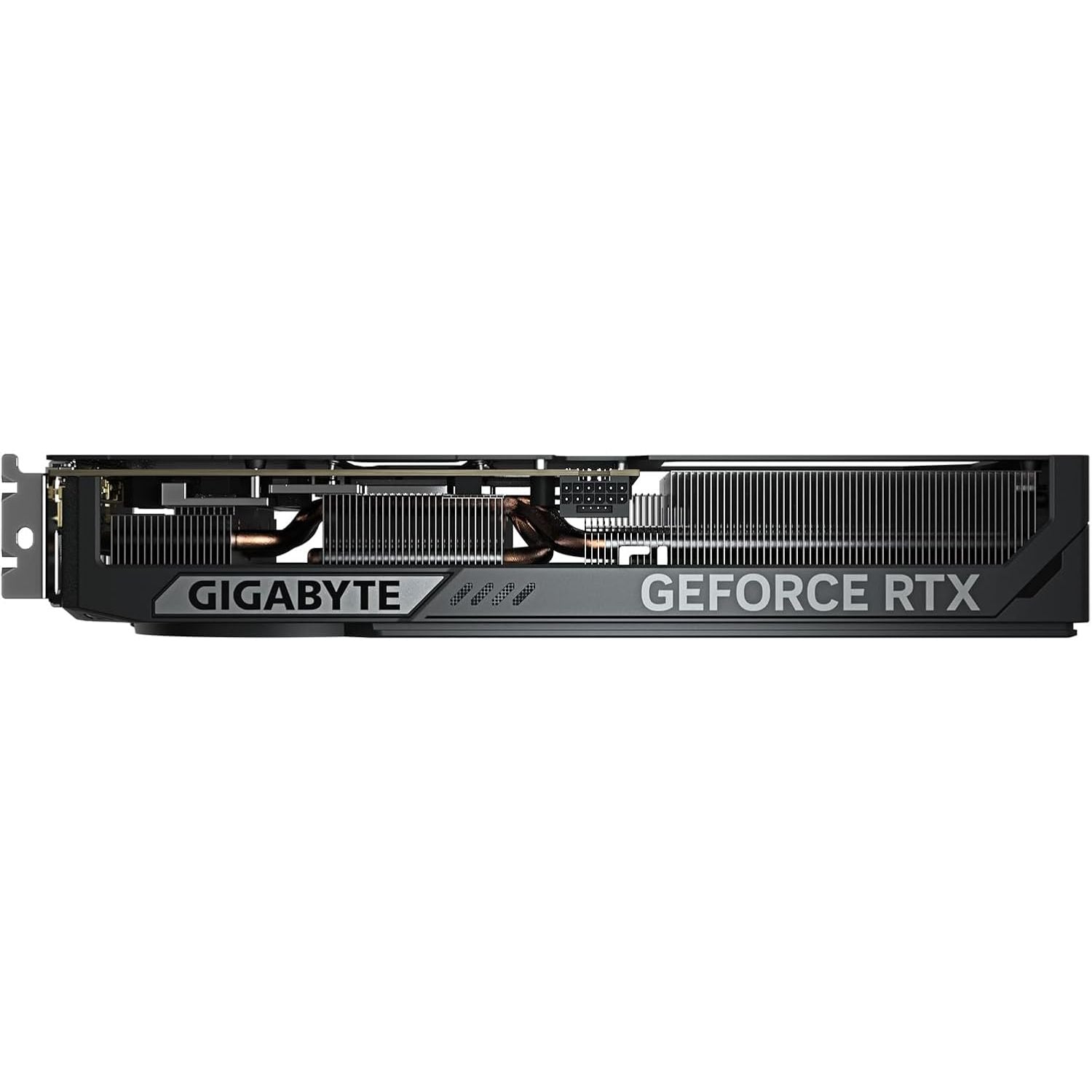

Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12GB GDDR7 PCI Express Graphics Card
The Gigabyte GeForce RTX 5070 WINDFORCE OC SFF delivers cutting-edge gaming and creative performance in a compact size, powered by NVIDIA Blackwell architecture. Featuring DLSS 4, real-time ray tracing, and a factory overclock, it’s designed for high-end performance in small form factor builds.
Key Features
-
GPU Architecture: NVIDIA Blackwell
-
CUDA Cores: 6,144
-
Memory: 12GB GDDR7
-
Memory Interface: 192-bit
-
Memory Speed: 28 Gbps
-
Memory Bandwidth: 672 GB/s
- Core Clock:
- Base: ~2,165 MHz
- Boost (OC Mode): ~2,542 MHz
-
Factory Overclocked: Yes
-
Ray Tracing Cores: 3rd Gen (Blackwell RT)
-
Tensor Cores: 5th Gen (for AI/DLSS)
-
AI Features: DLSS 4, NVIDIA Reflex 2, NVIDIA Broadcast, NVIDIA Studio
Cooling & Design
-

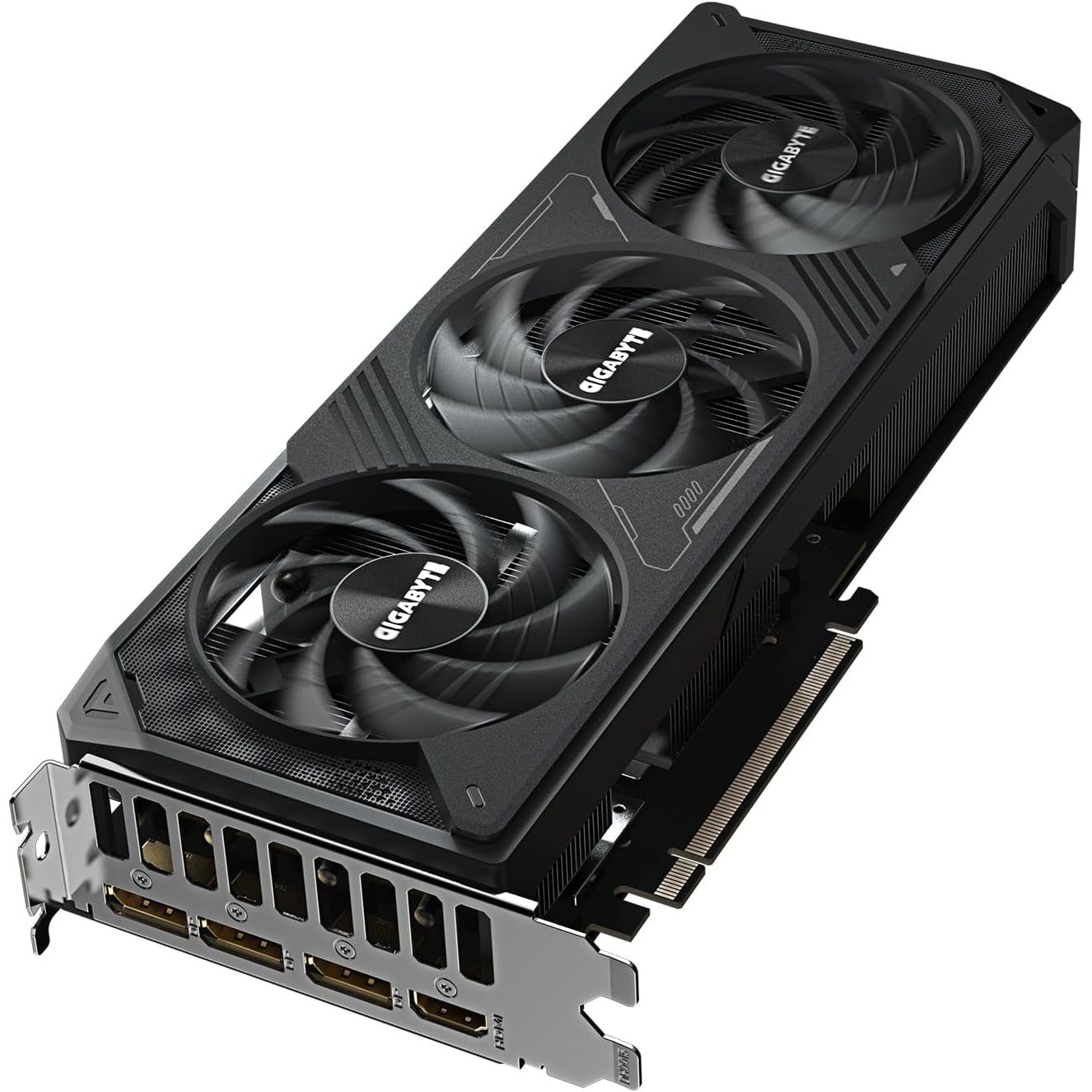

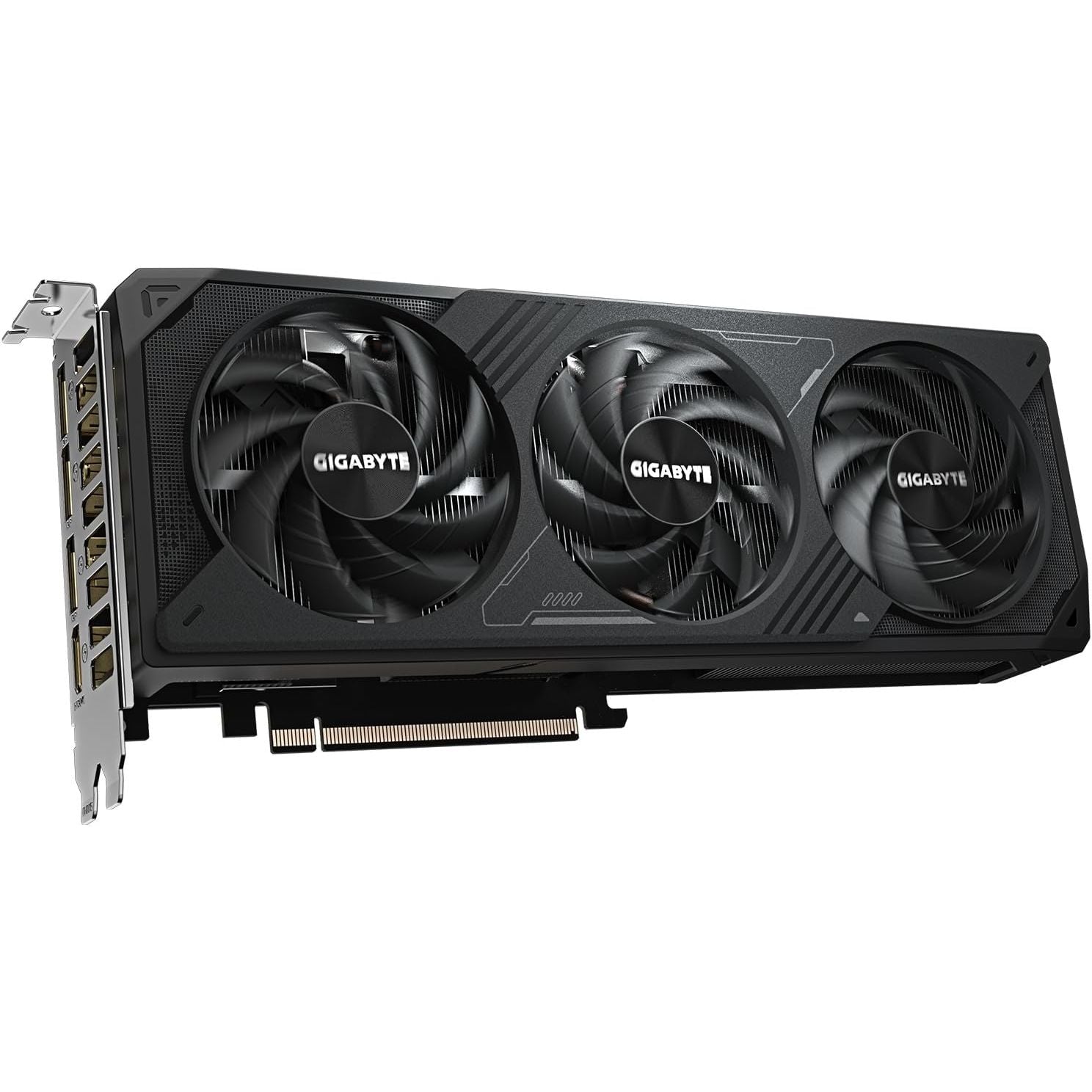

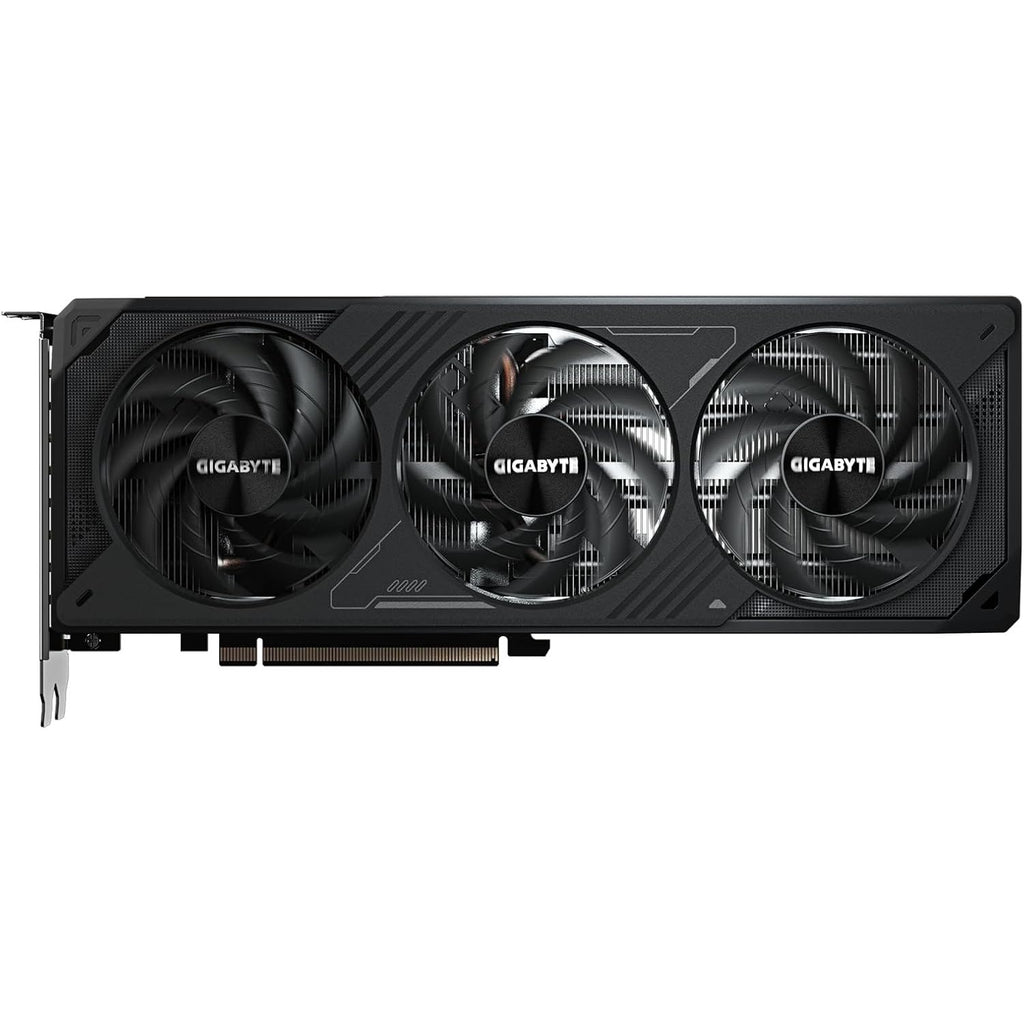

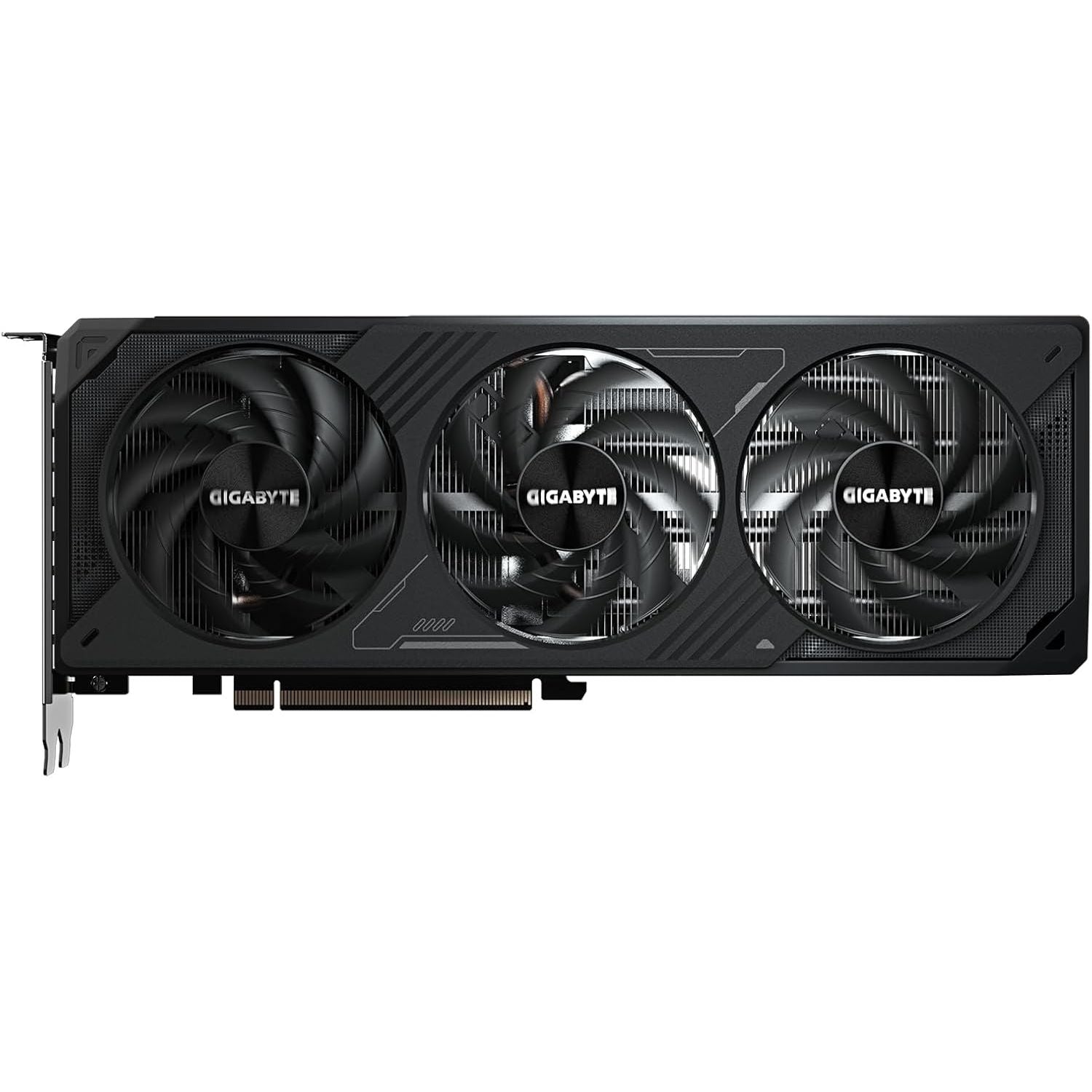

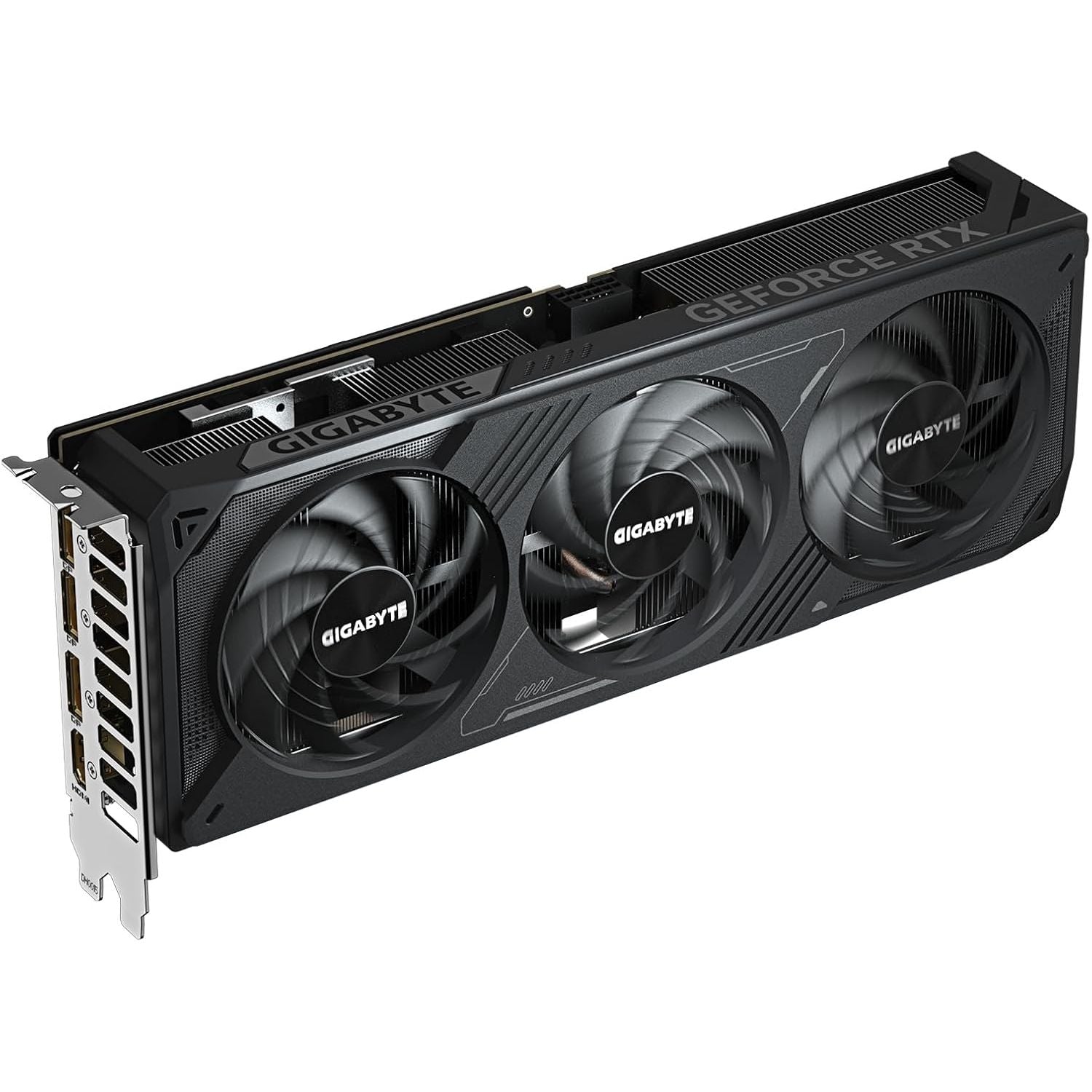

Cooling System: WINDFORCE triple-fan (Hawk fans)
- Cooling Features:
- Alternate spinning fans for airflow optimization
- Graphene nano-lubricant bearings
- Large heatsink with composite heat pipes
- High-quality thermal pads

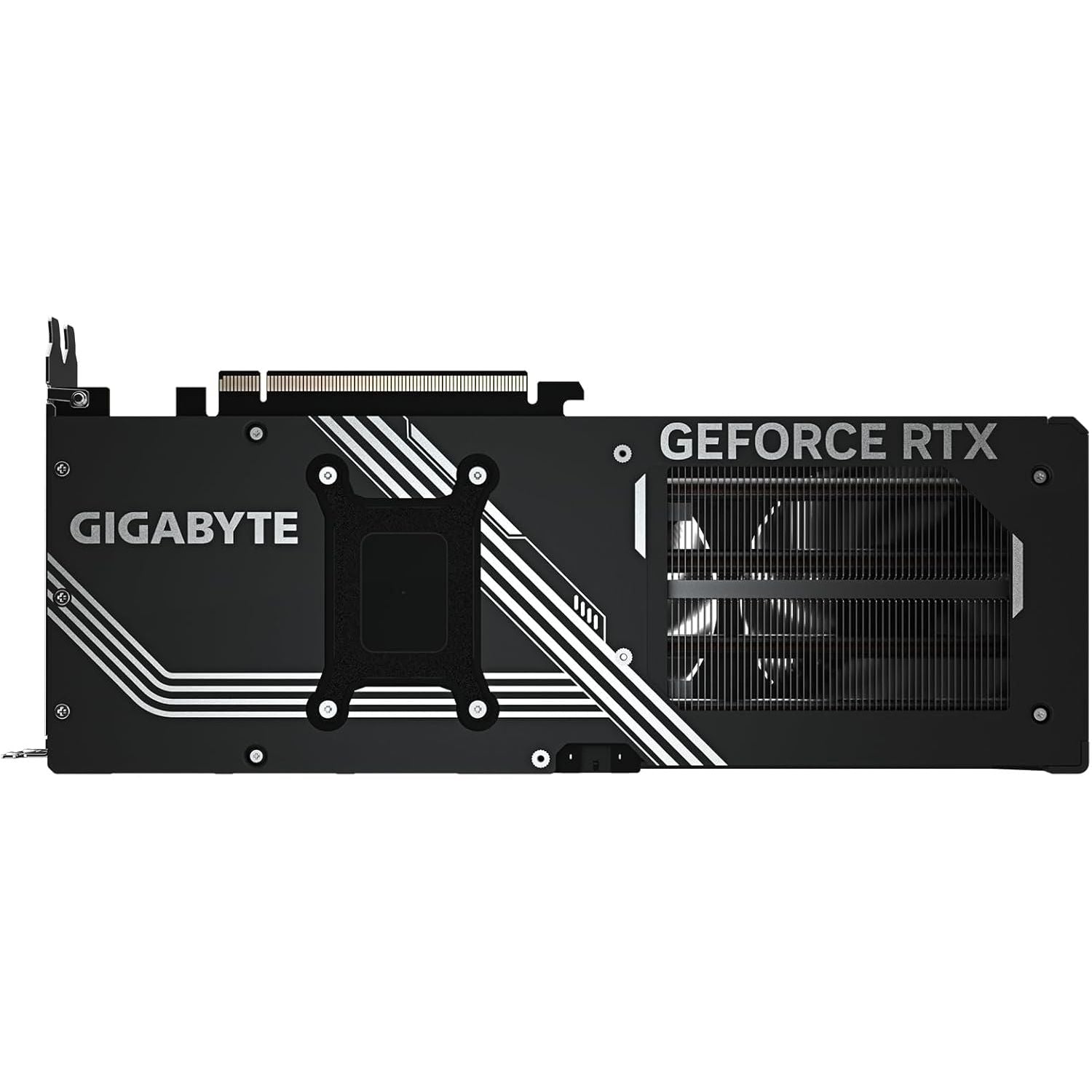

- Metal backplate for rigidity
-
SFF Compatible: Yes – compact size for small form factor builds
-
Card Dimensions: 282 × 115 × 50 mm (~3-slot design)
Power & Requirements
-
TDP (Typical Board Power): ~250 W
-
Power Connector: 1 × 16-pin 12VHPWR (adapter included in retail package)
-
Recommended PSU: 650 W minimum
-
PCI Express Interface: PCIe 5.0 x16
Display Connectivity

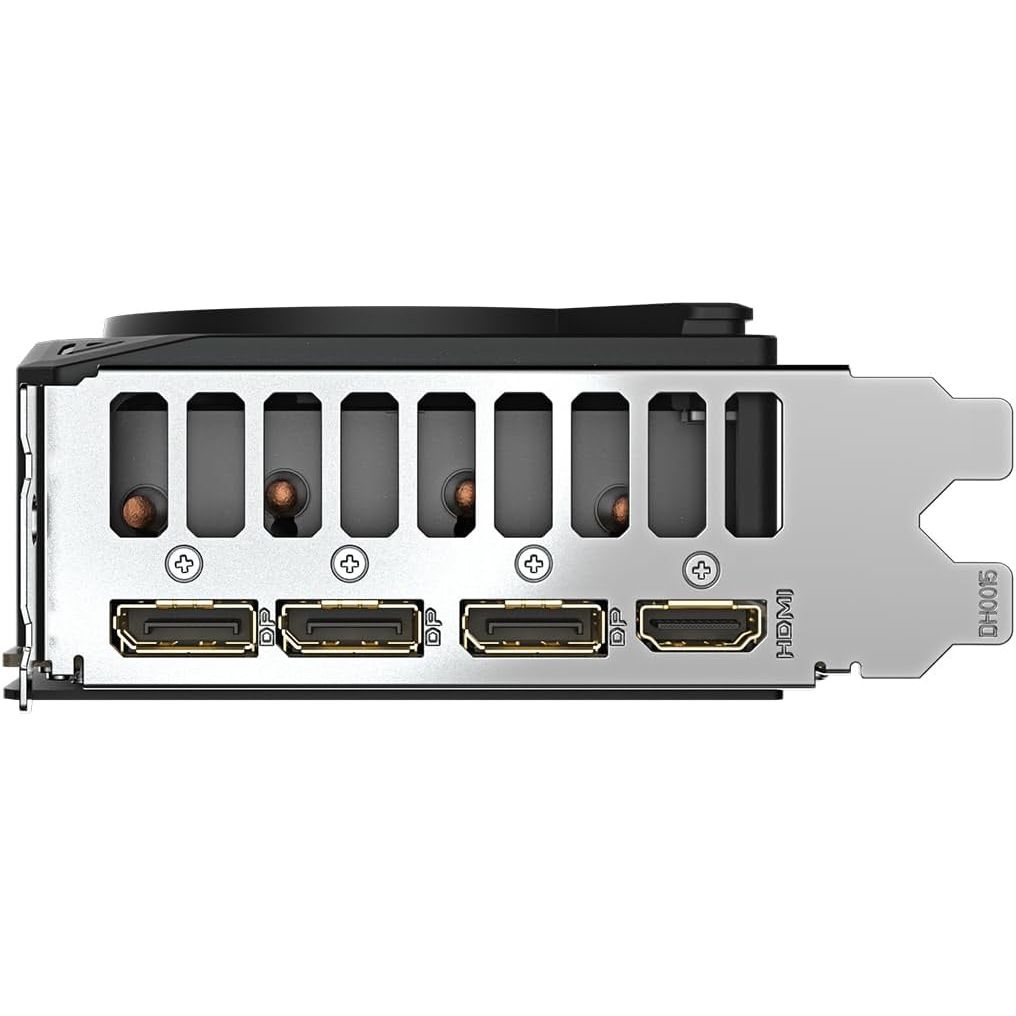

- Ports:
- 3 × DisplayPort 2.1a (supports up to 4K@240Hz or 8K@60Hz)
- 1 × HDMI 2.1b (supports 4K@120Hz, VRR, HDR)
-
Multi-Monitor Support: Up to 4 displays
Software & Features
-
Supported APIs: DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.3
- NVIDIA Technologies:
- Ray Tracing
- DLSS 4 (AI Frame Generation)
- Reflex 2 (low latency gaming)
- G-SYNC
- RTX Video Super Resolution
- RTX HDR
- NVIDIA Studio for creators
-
Gigabyte Utility: AORUS Engine for tuning, monitoring, and RGB control

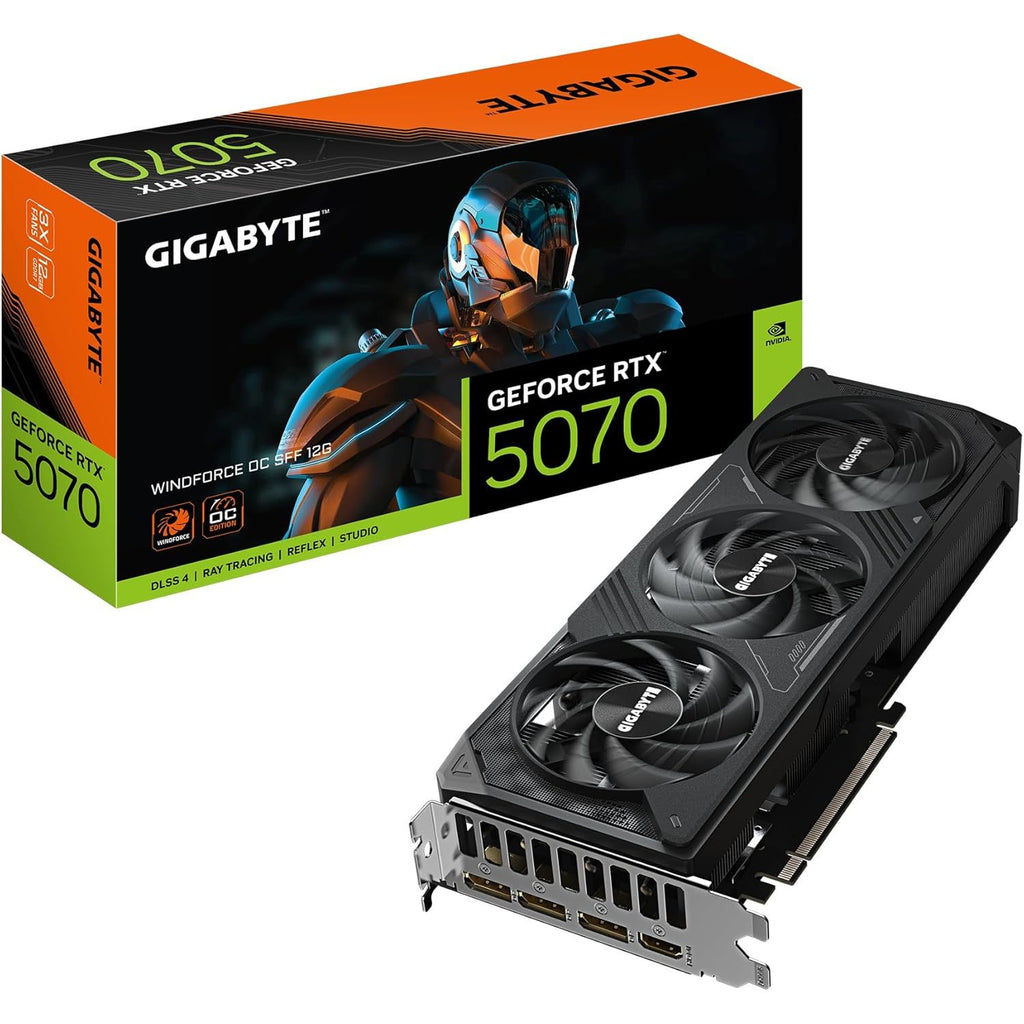

Package Contents
- Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12GB Graphics Card
- 16-pin 12VHPWR power adapter
- Quick start guide
- Warranty information
Ideal Use Cases
-
Gaming: 1440p Ultra / 4K High settings with ray tracing and DLSS 4 enabled
-
Esports: High FPS competitive games at 1080p/1440p with ultra-low latency
-
Content Creation: Video editing, 3D rendering, AI-assisted workflows
-
Compact Builds: High-performance small form factor gaming PCs
EAN / Product Code
-
Model Number: GV-N5070WF3OC-SFF-12GD
-
EAN:4719331355715
