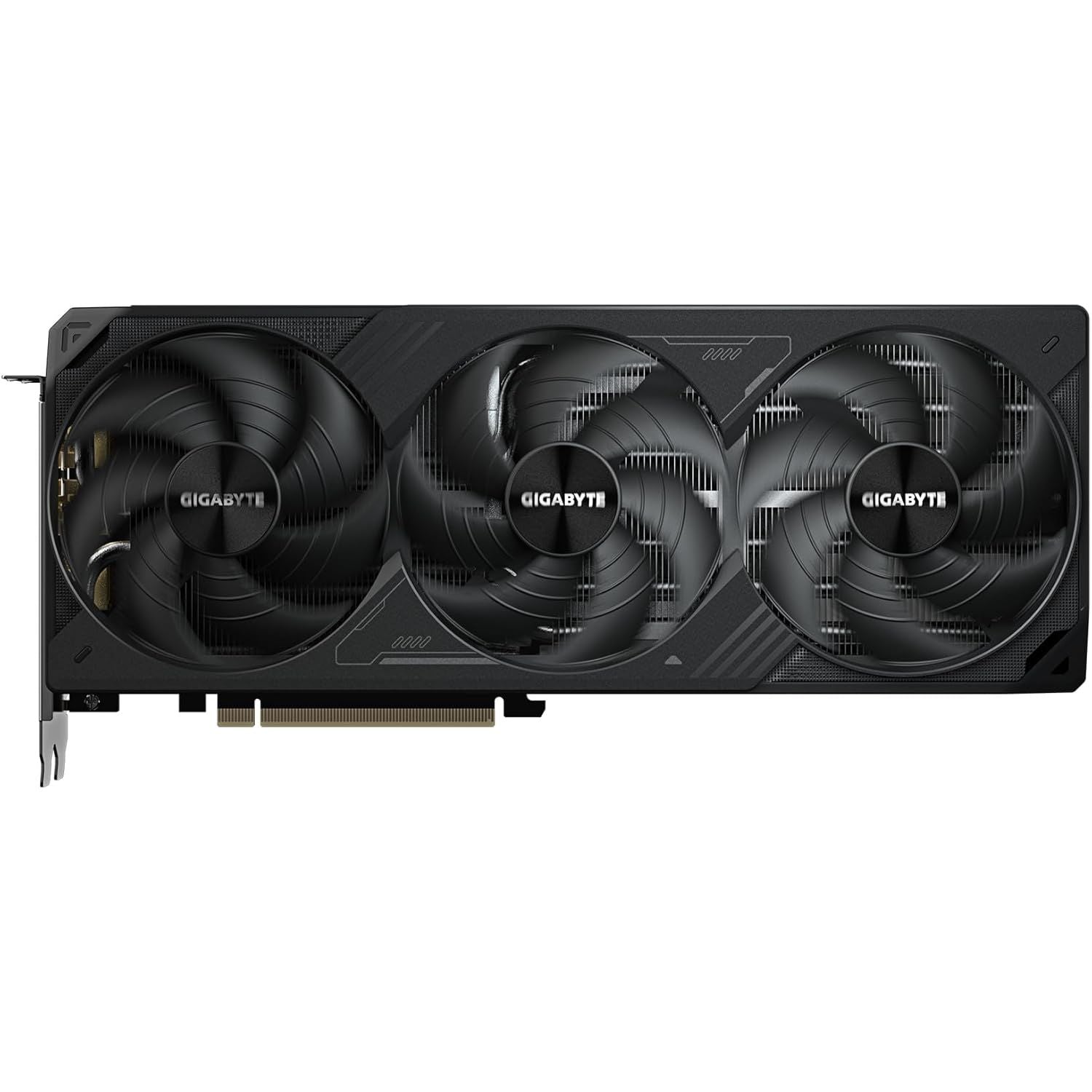

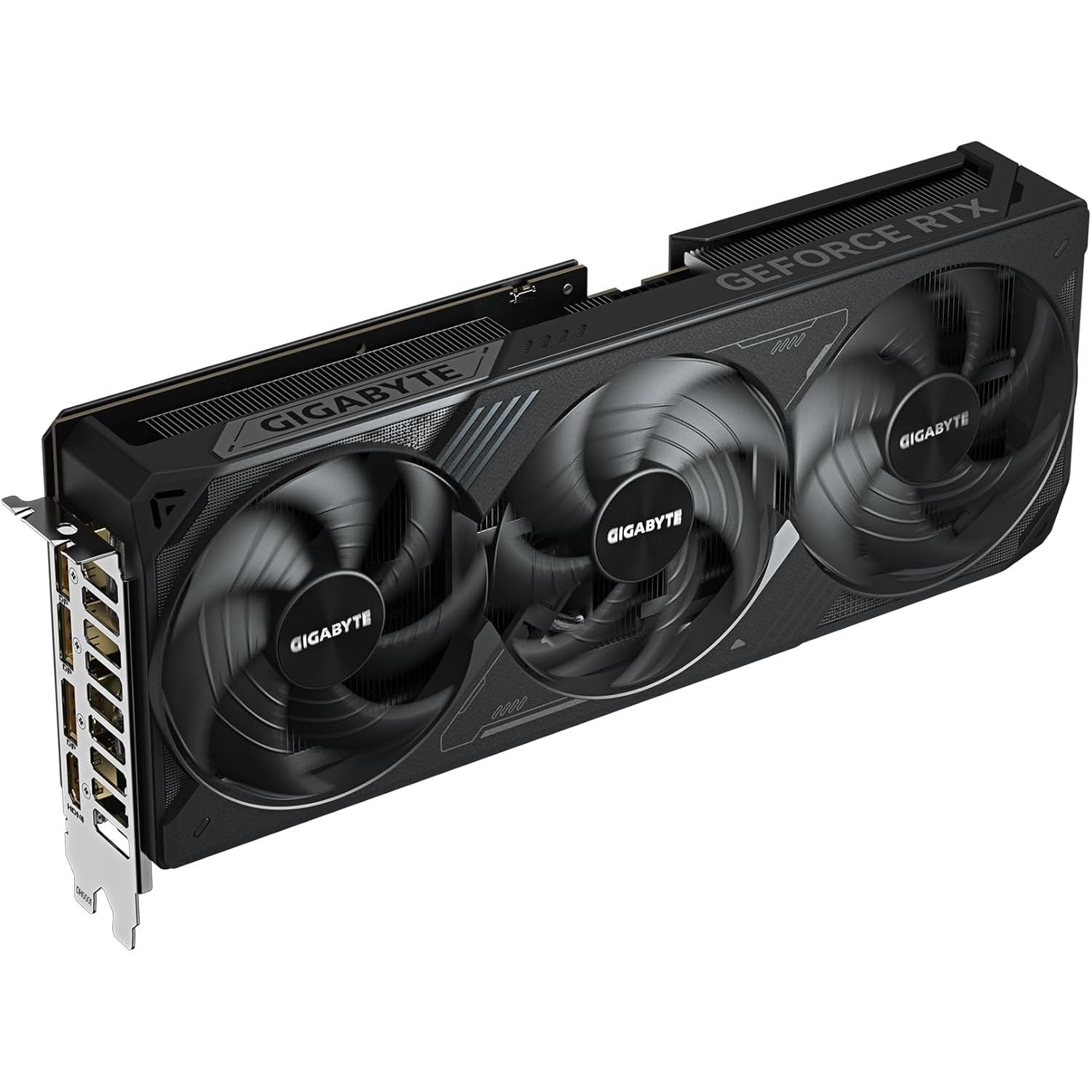

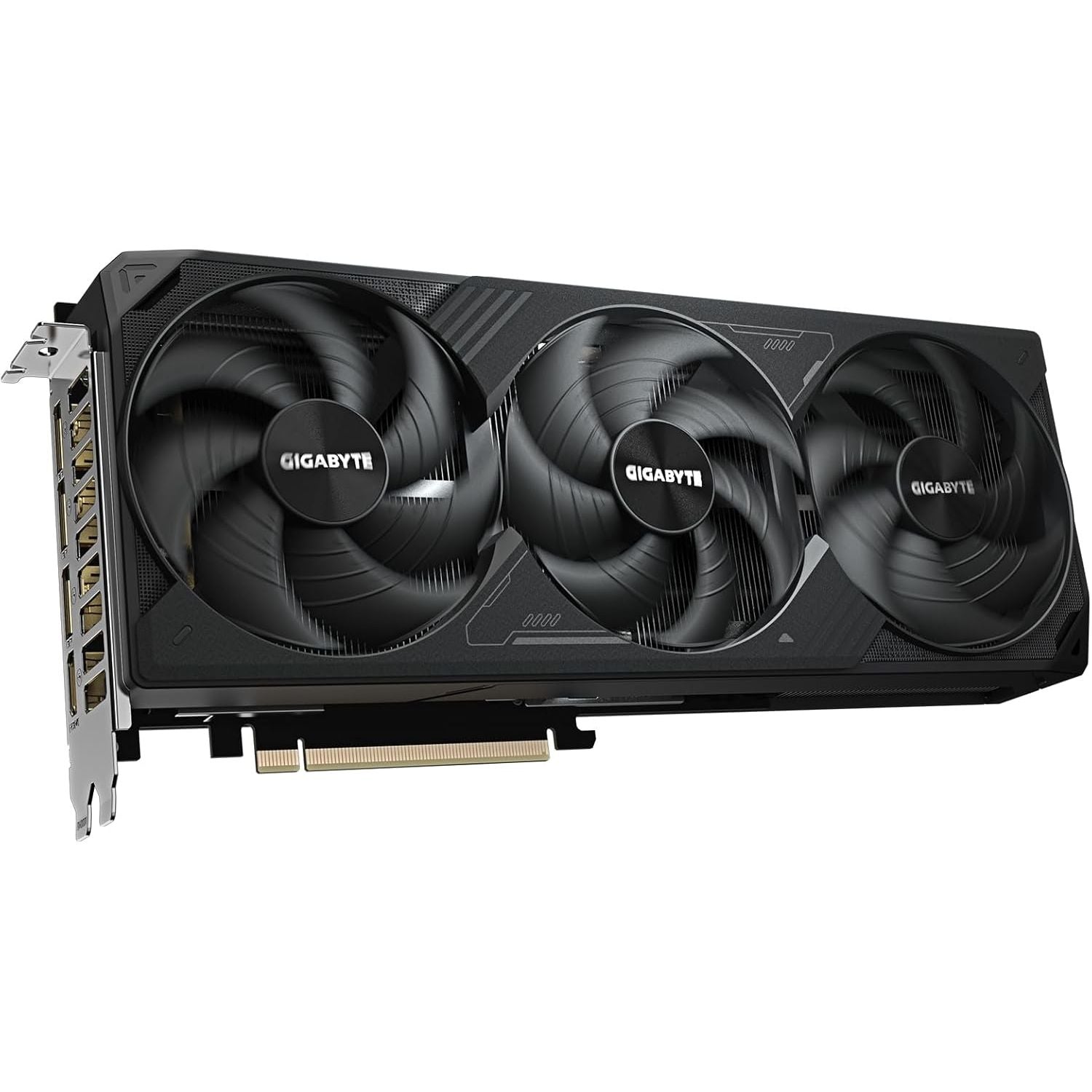

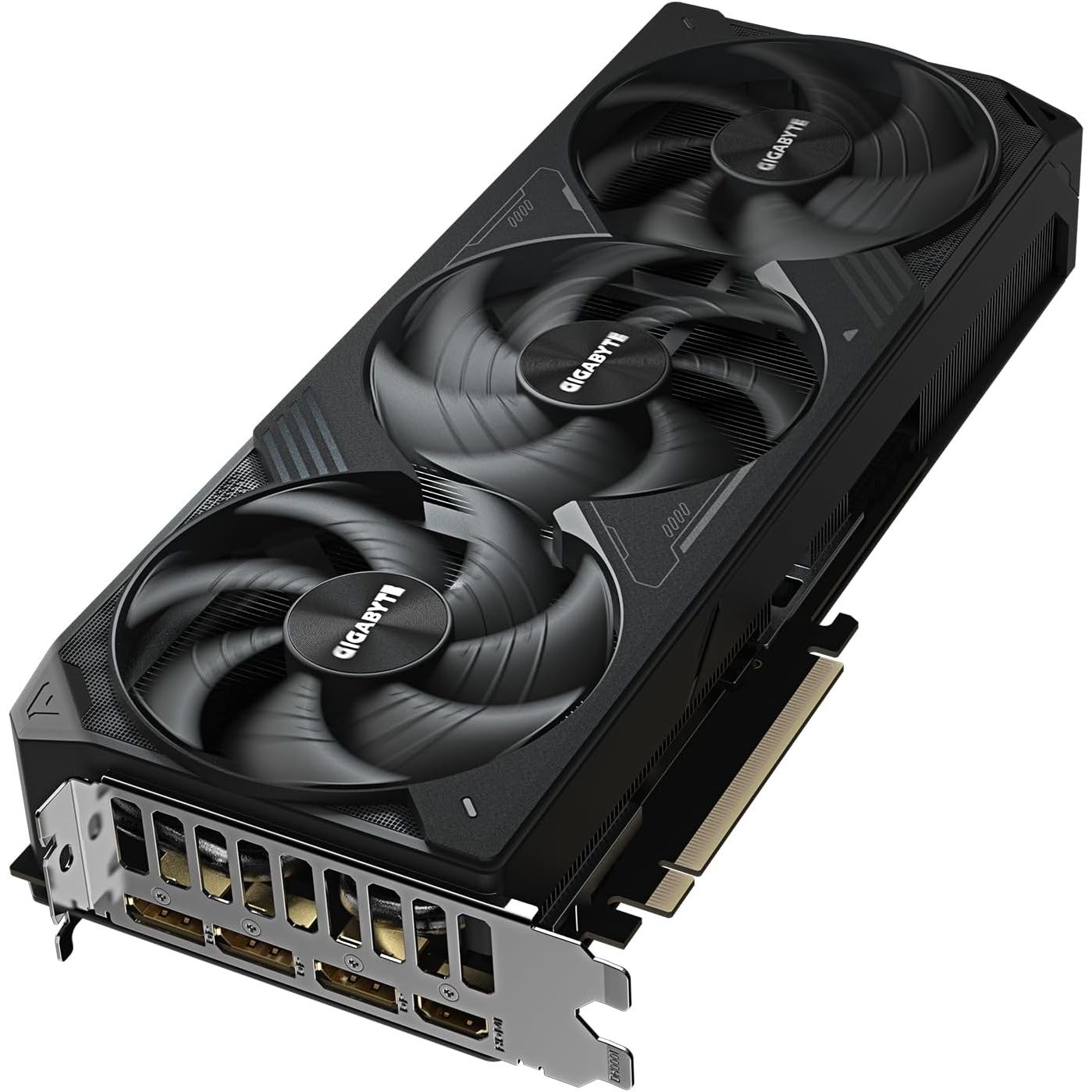

Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16GB GDDR7 PCI Express Graphics Card
Model Number: GV-N5080WF3OC-16GD
The Gigabyte GeForce RTX 5080 WINDFORCE OC SFF is a high-performance, small form factor graphics card powered by NVIDIA’s Blackwell architecture. With advanced AI rendering, real-time ray tracing, and a factory overclock, it delivers exceptional gaming and creative performance in a compact design, ideal for high-end SFF builds.
Key Specifications
GPU Architecture: NVIDIA Blackwell (RTX 50 Series)
CUDA Cores: 10,752
Base Clock: ~2,617 MHz (reference)
Boost Clock (OC Mode): ~2,670 MHz
Memory: 16GB GDDR7
Memory Interface: 256-bit
Memory Speed: 30 Gbps
Memory Bandwidth: 960 GB/s
PCIe Interface: PCI Express 5.0 x16
TDP / Typical Board Power: ~320 W
Recommended PSU: 850 W minimum

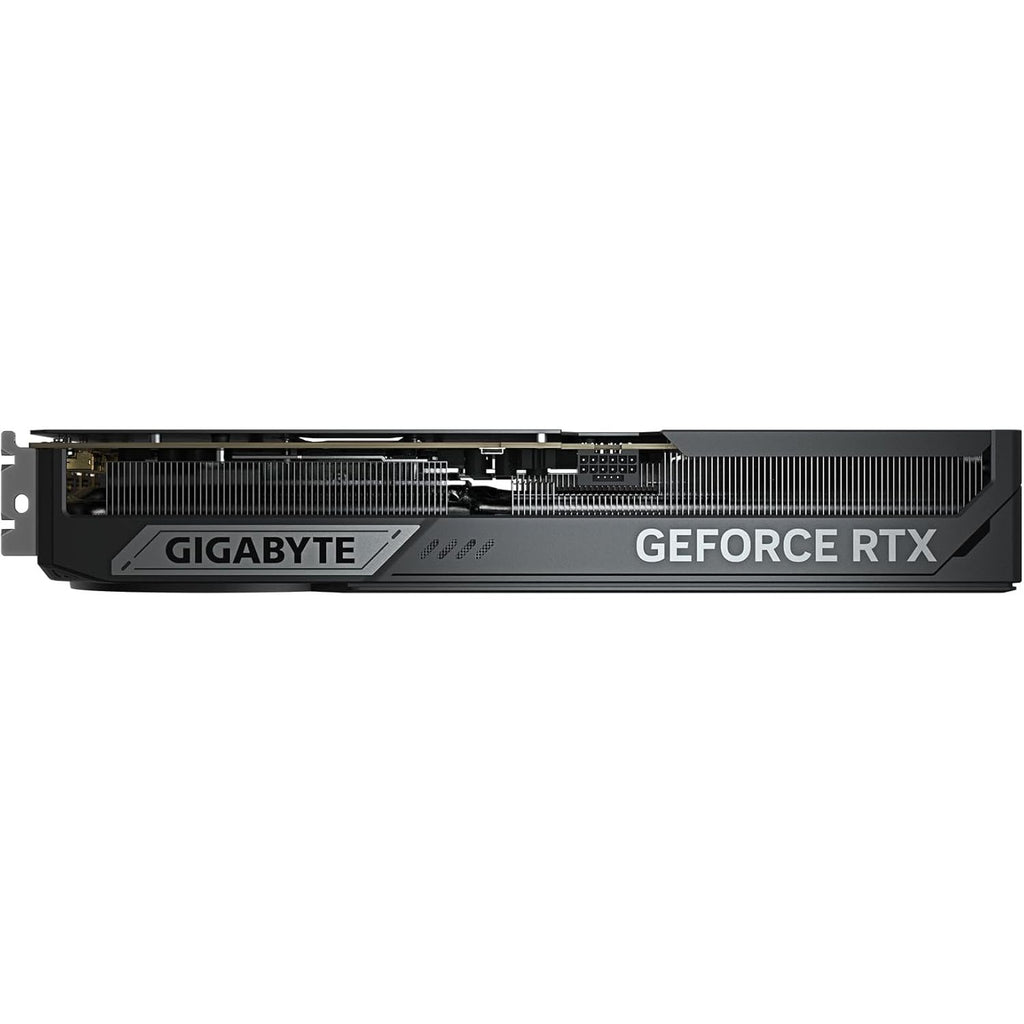

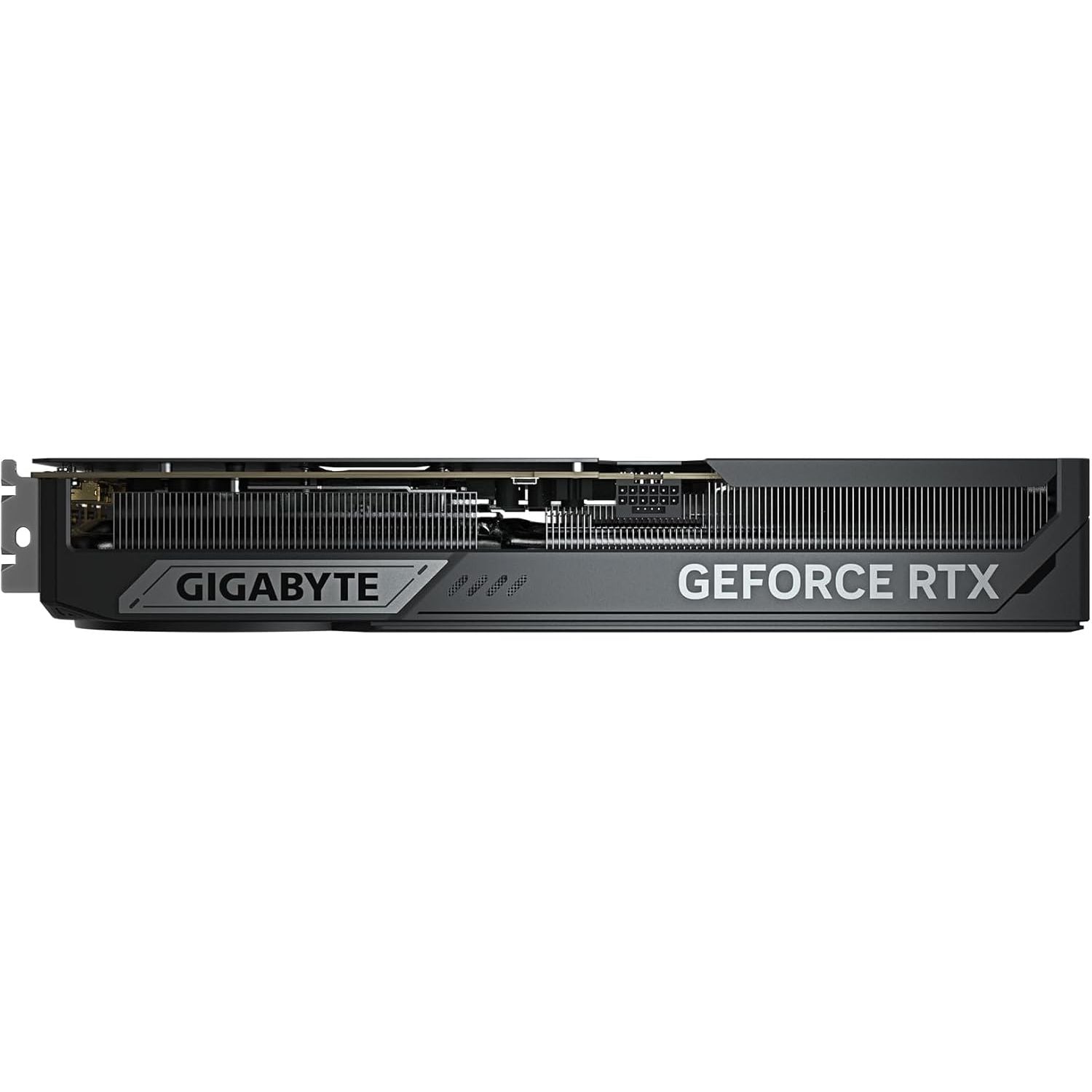

Power Connector: 1 × 16-pin 12VHPWR (adapter included)
Cooling & Design Features
- WINDFORCE Cooling System:
- Triple 3× 80mm Hawk fans with alternate spinning for optimized airflow
- Graphene nano-lubricant fan bearings for longer life and quieter operation
- Large vapor chamber with composite copper heat pipes for maximum heat transfer
- High-performance thermal pads
- Screen cooling with extended heatsink fins
-
Dual BIOS Modes: Performance Mode & Silent Mode
-

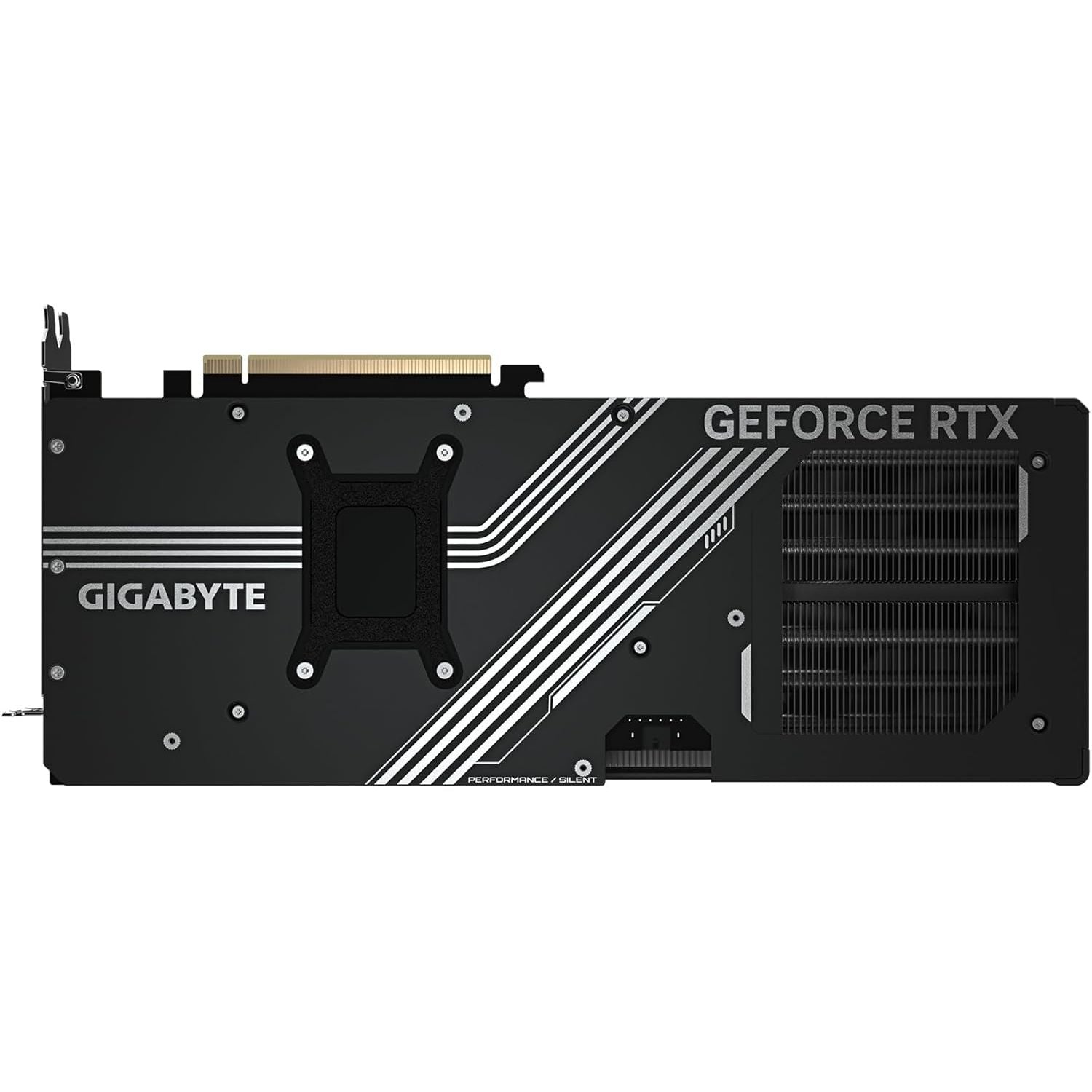

Metal Backplate: Adds rigidity and protects components
-
Anti-Sag VGA Holder: Helps maintain structural integrity in PC cases
-
SFF Ready: Designed to fit NVIDIA’s Small Form Factor compatibility standards
-
Dimensions: 281 × 115 × 50 mm (~3-slot design)

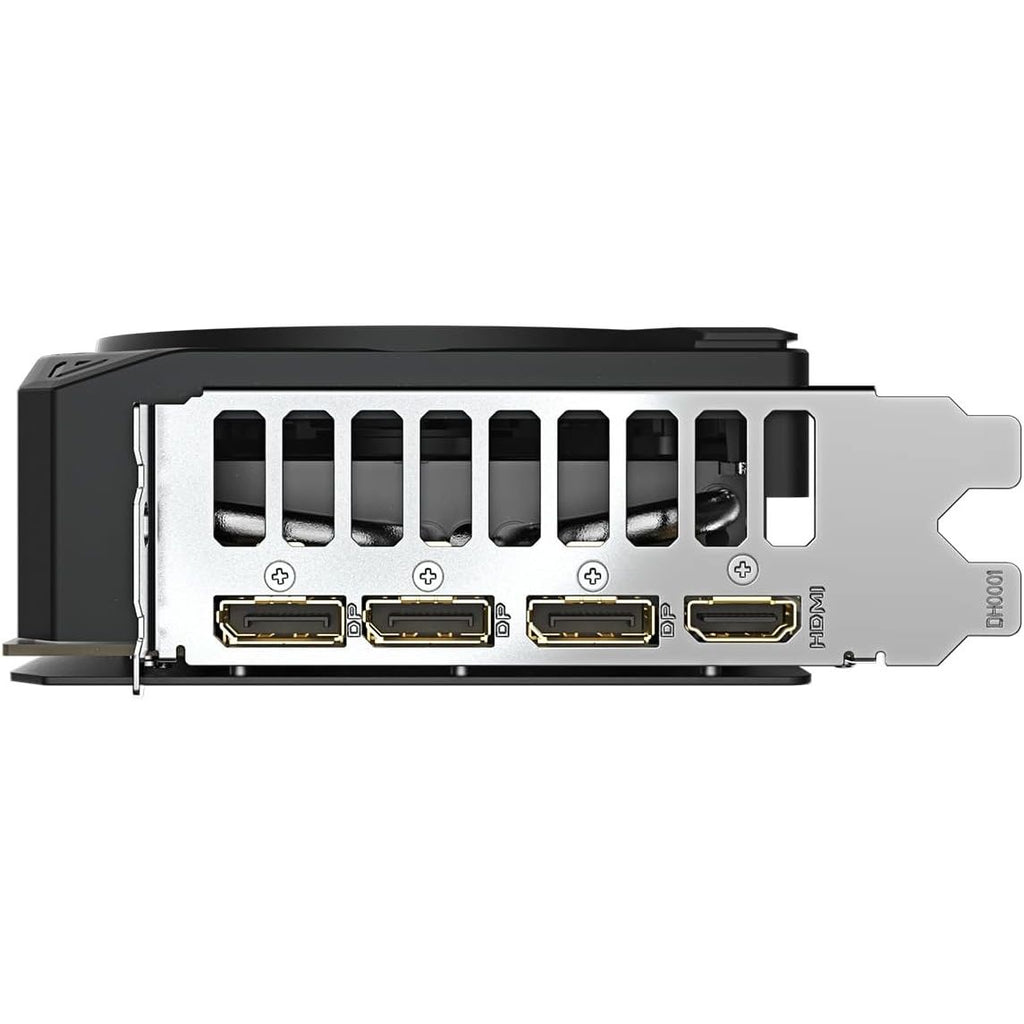

Display Connectivity
- Outputs:
- 3 × DisplayPort 2.1a
- 1 × HDMI 2.1b
-
Maximum Resolution: 7680 × 4320 (8K at 60Hz)
-
Multi-Monitor Support: Up to 4 displays
-
VR Ready: Yes
NVIDIA Technologies & Software Support
-
DLSS 4: AI-powered frame generation for higher FPS
-
Reflex 2 with Frame Warp: Ultra-low latency gaming
-
Ray Tracing: Real-time cinematic visuals with neural rendering
-
NVIDIA Studio: Optimized for creative workflows
-
NVIDIA Broadcast: AI-powered streaming tools
- RTX Video Super Resolution & HDR
-
G-SYNC Compatible: Smooth, tear-free gameplay
-
API Support: DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6
-
Gigabyte AORUS Engine: GPU tuning, monitoring, and fan control

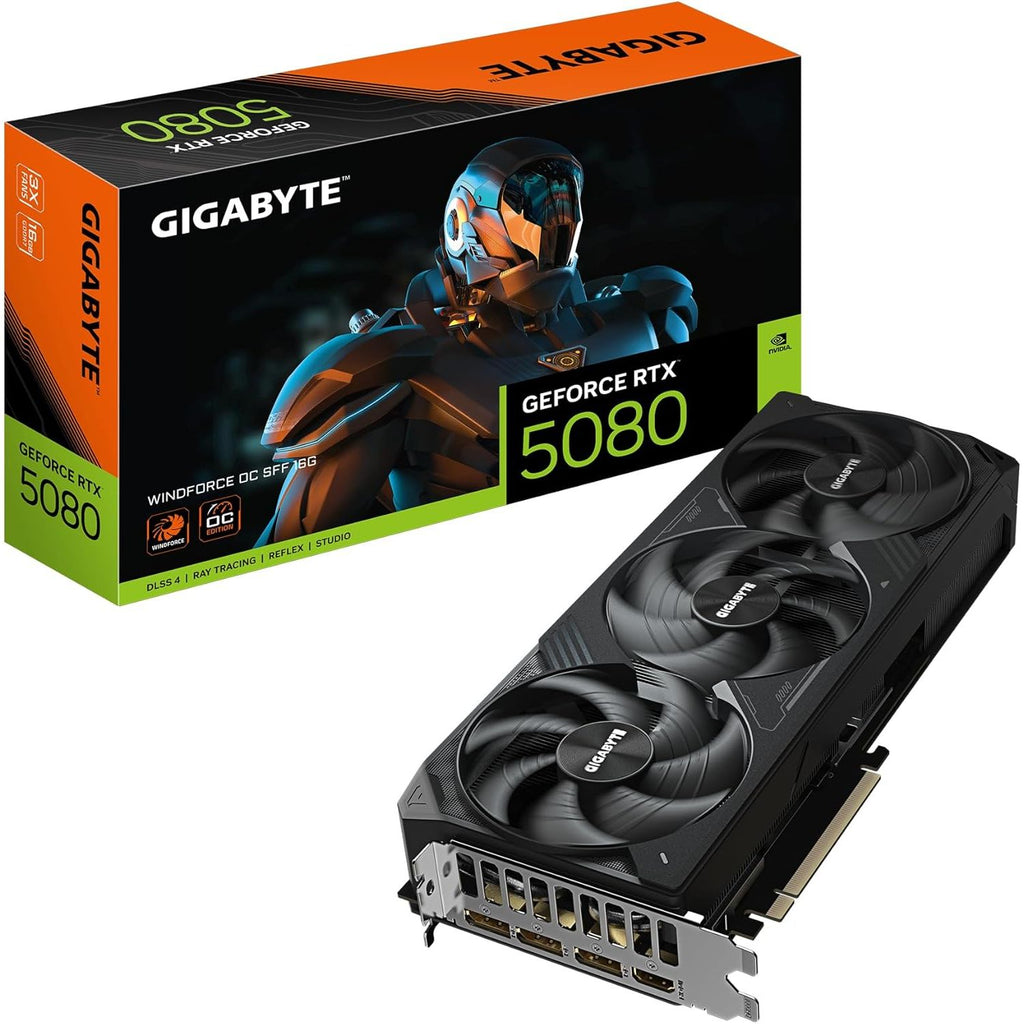

Package Contents
- Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16GB Graphics Card
- 16-pin 12VHPWR power adapter
- Quick installation guide
- Warranty information
Ideal Use Cases
-
4K Ultra Gaming with ray tracing and DLSS 4 enabled
-
Competitive Esports at high frame rates with ultra-low latency
-
Professional Content Creation including 3D rendering, video editing, and AI workloads
-
Small Form Factor PCs needing top-tier performance without full-size GPU footprint
