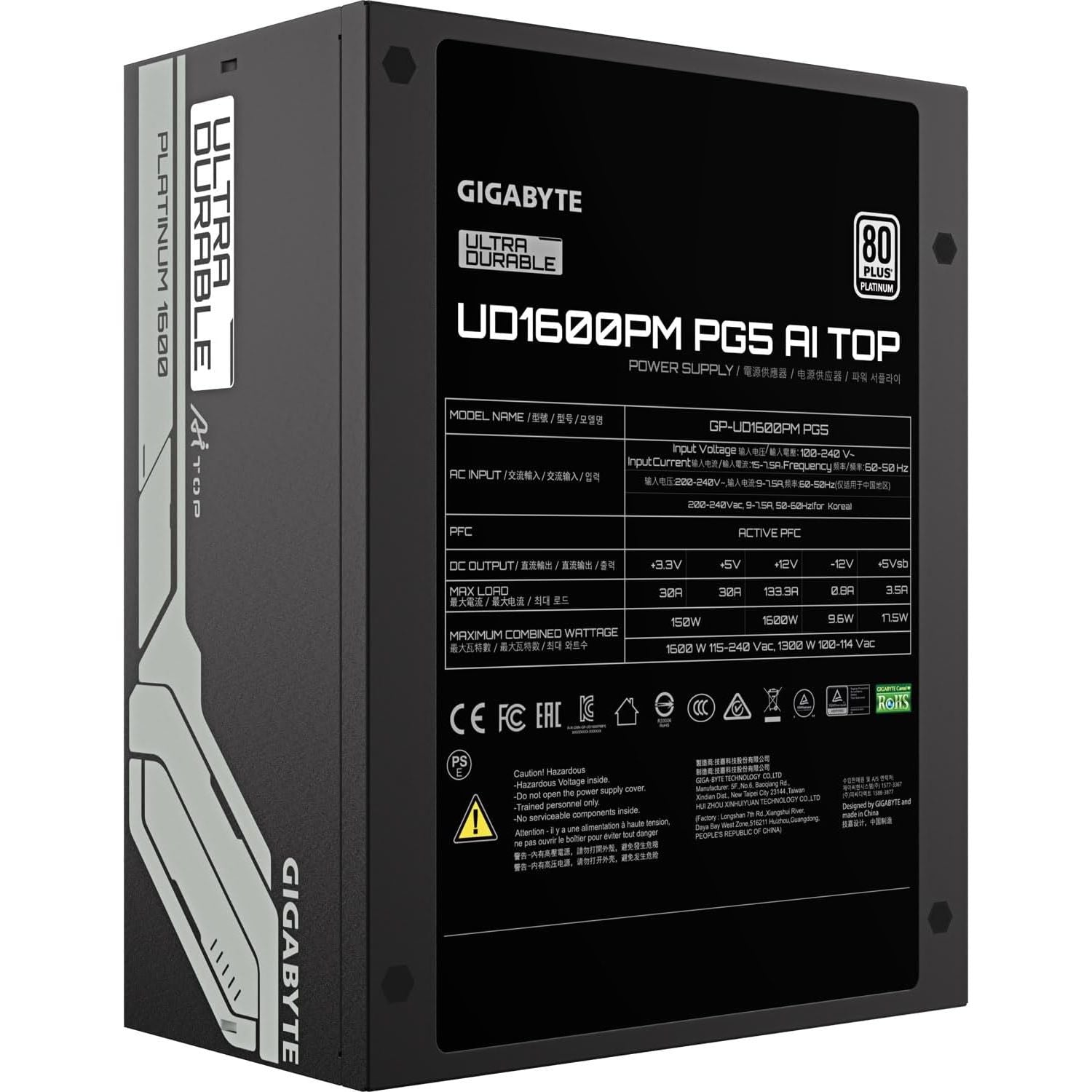

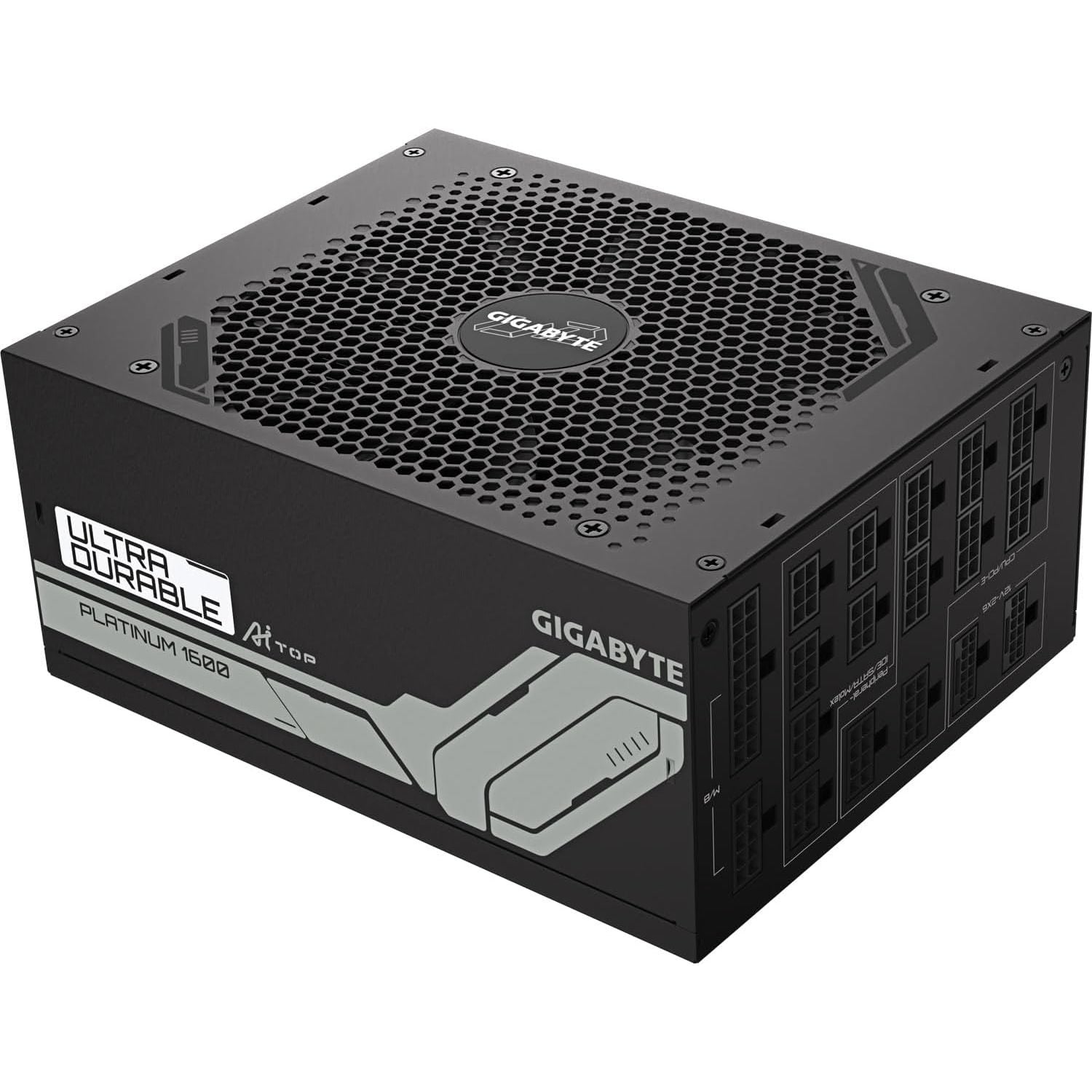

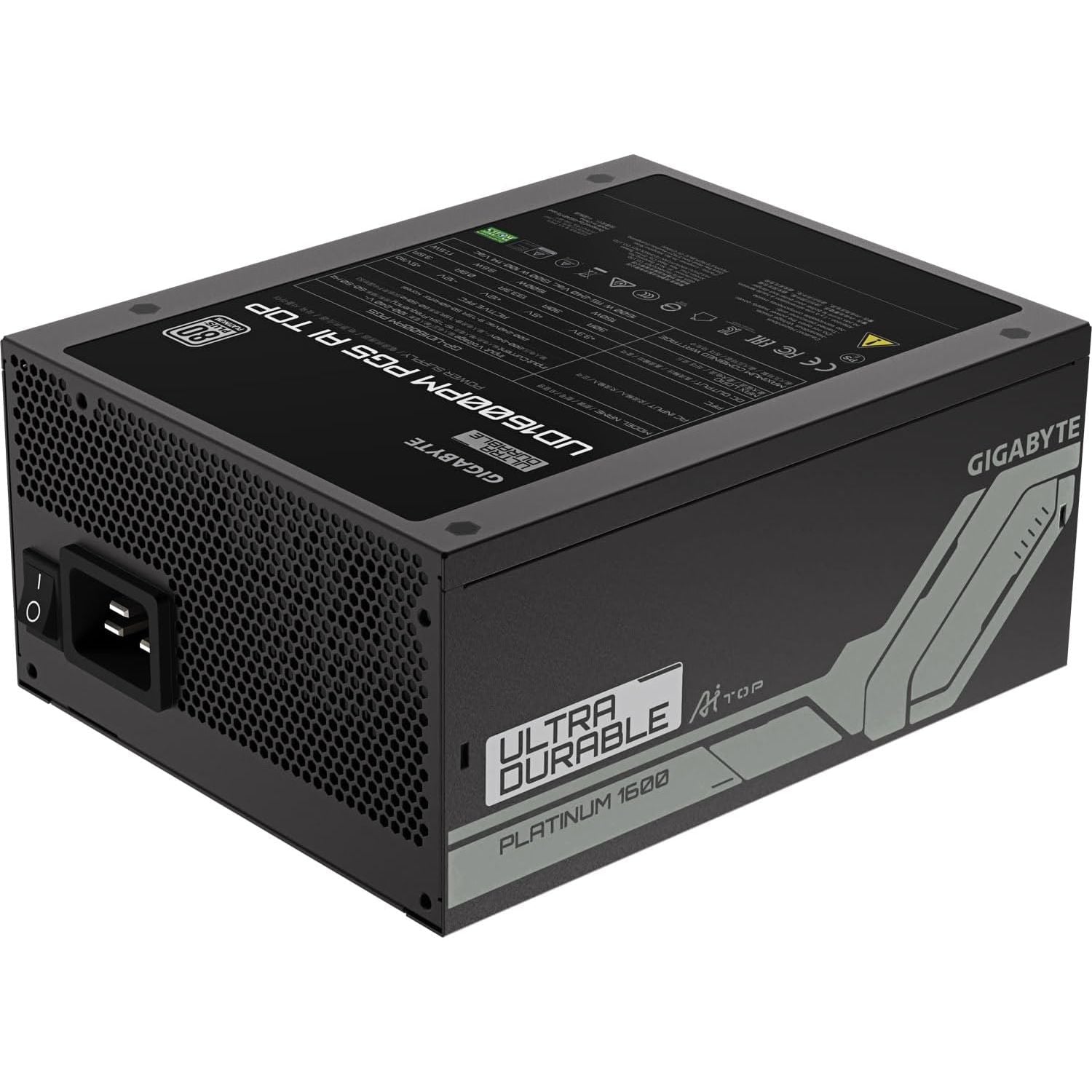

Gigabyte UD1600PM PG5 AI TOP 1600W Power Supply Unit – 80+ Platinum, Fully Modular, ATX 3.1, PCIe 5.0

Future-Ready Power for Demanding Builds

The Gigabyte UD1600PM PG5 AI TOP delivers a massive 1600 W output with cutting-edge ATX 3.1 and PCIe 5.0 compatibility. Designed for high-end gaming PCs, AI/ML workstations, and multi-GPU setups, this PSU offers exceptional stability, energy efficiency, and cable flexibility.

Key Features & Benefits

• 1600 W Maximum Output – Power the most demanding GPU and CPU combinations.

• 80+ Platinum Certified – Up to 92% energy efficiency, reducing heat and lowering electricity costs.

• ATX 3.1 & PCIe 5.0 Ready – Fully compatible with next-gen GPUs, including native 16-pin (12VHPWR) connectors.

• Fully Modular Cabling – Only use the cables you need for a cleaner build and better airflow.

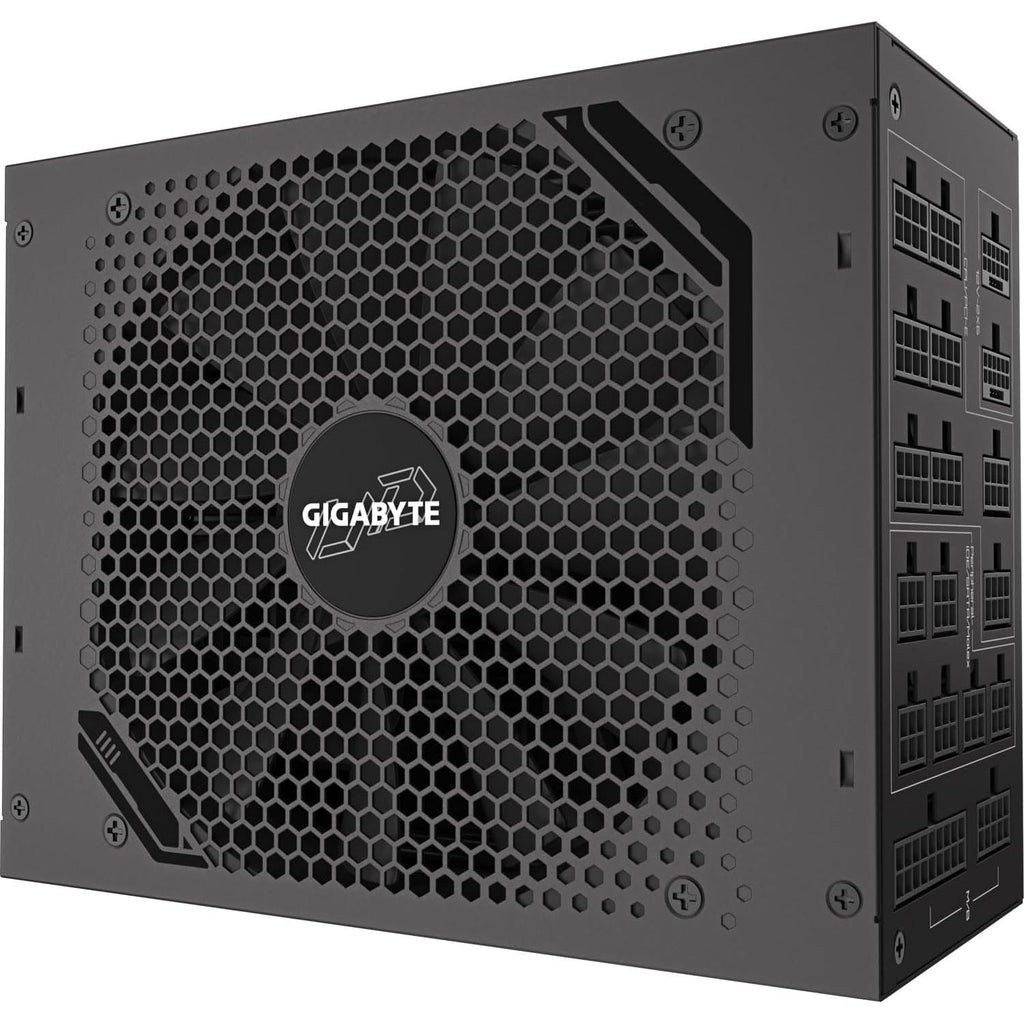

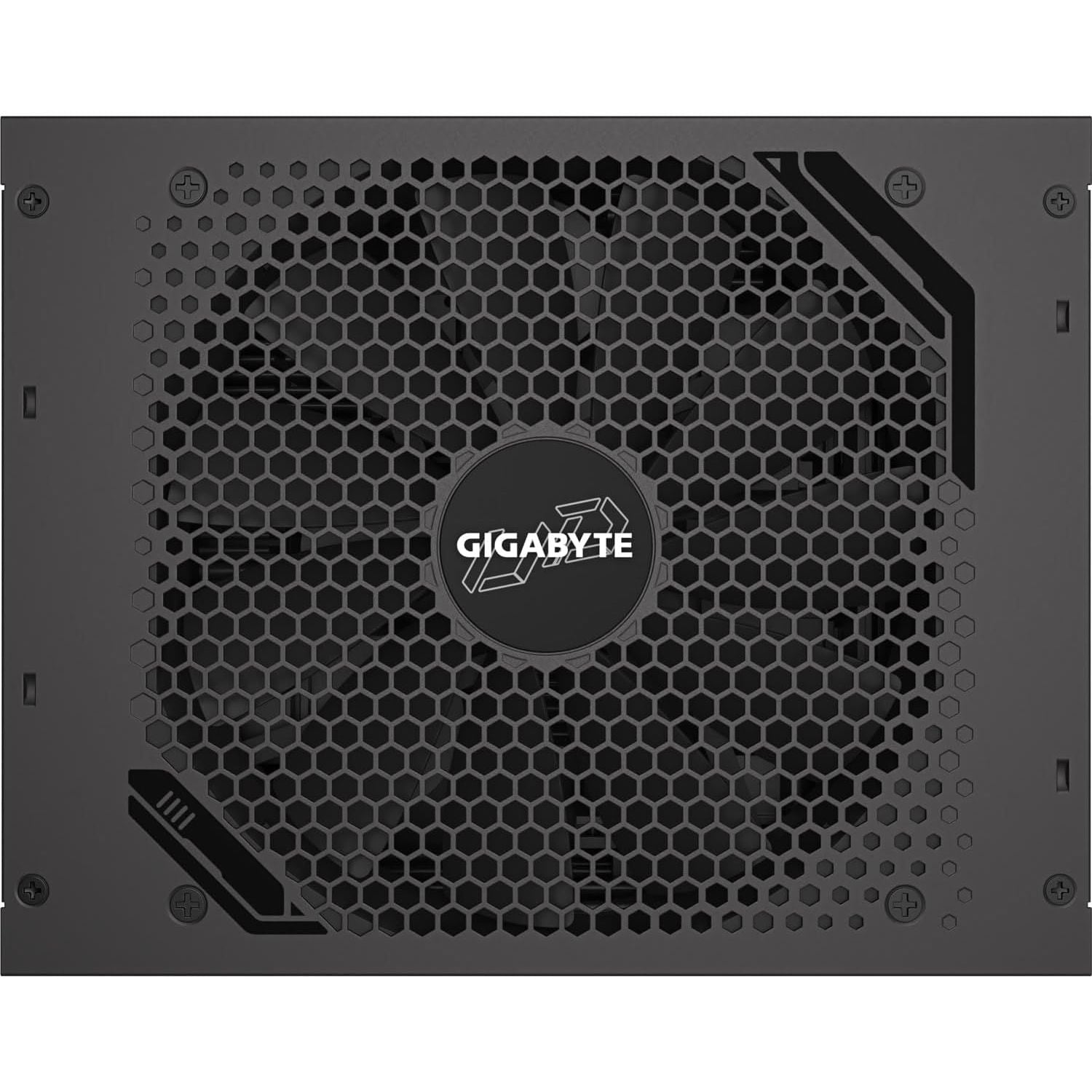

• Smart Fan Control – 140 mm double ball-bearing fan stops completely at low loads for silent operation.

• Premium Japanese Capacitors – Built for long-term durability and reliable performance.

• Advanced Protection Circuitry – OVP, OCP, OPP, UVP, OTP, and SCP safeguards keep your hardware safe.

• 10-Year Warranty – Confidence in long-term performance.

Technical Specifications

• Model: UD1600PM PG5 AI TOP (GP-UD1600PM-PG5-UK)

• Form Factor: ATX

• Maximum Power: 1600 W

• Efficiency Rating: 80+ Platinum

• Input Voltage: 100–240 V AC

• Fan Size: 140 mm (double ball bearing)

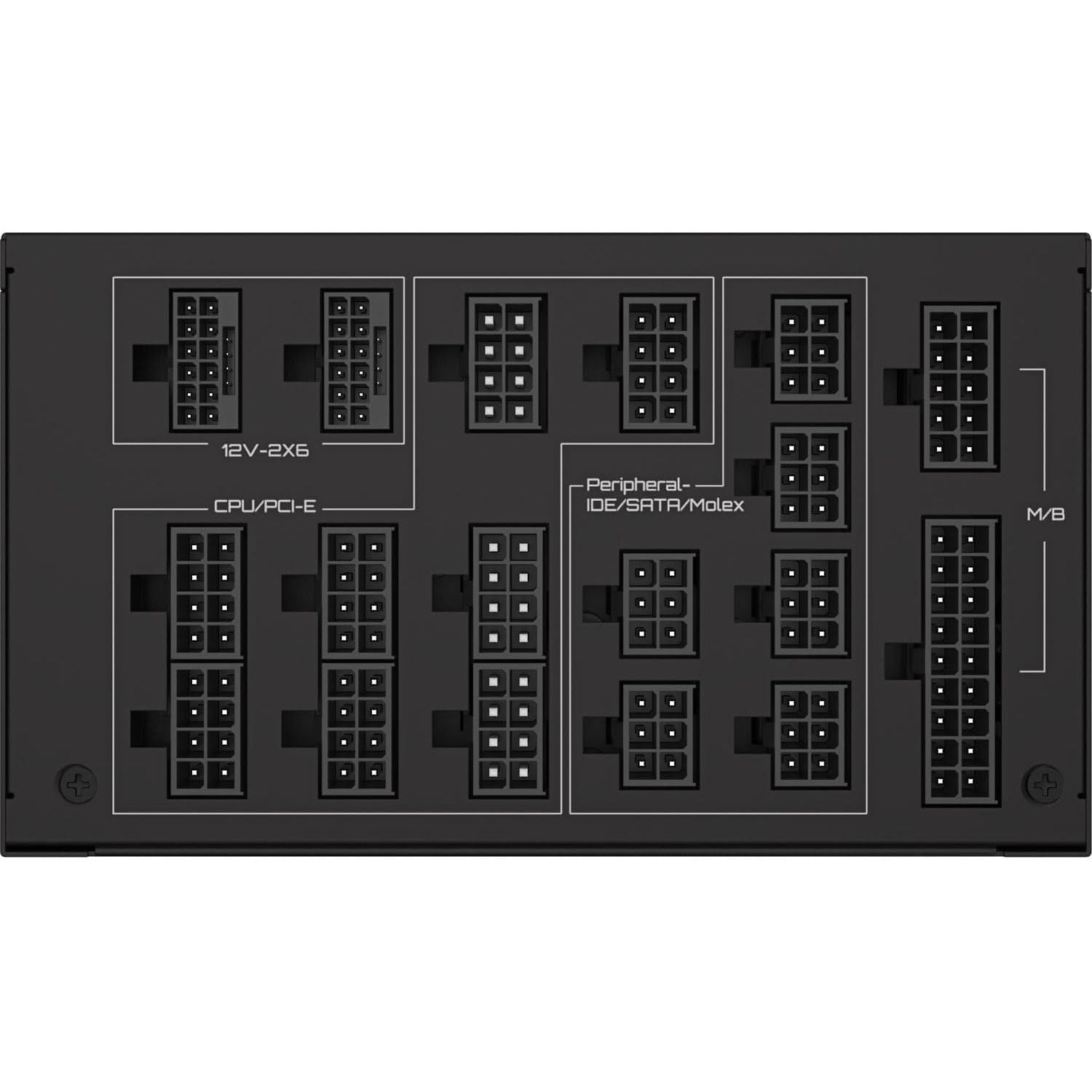

• Connectors:

  • 1 × 24-pin ATX

  • 2 × 8-pin (4+4) CPU/EPS

  • 2 × 16-pin (12VHPWR) PCIe

  • 8 × 6+2-pin PCIe

  • 16 × SATA

  • 6 × Molex

  • 2 × Floppy

• Colour: Black

• Dimensions: 150 × 190 × 86 mm

• Weight: 5.3 kg

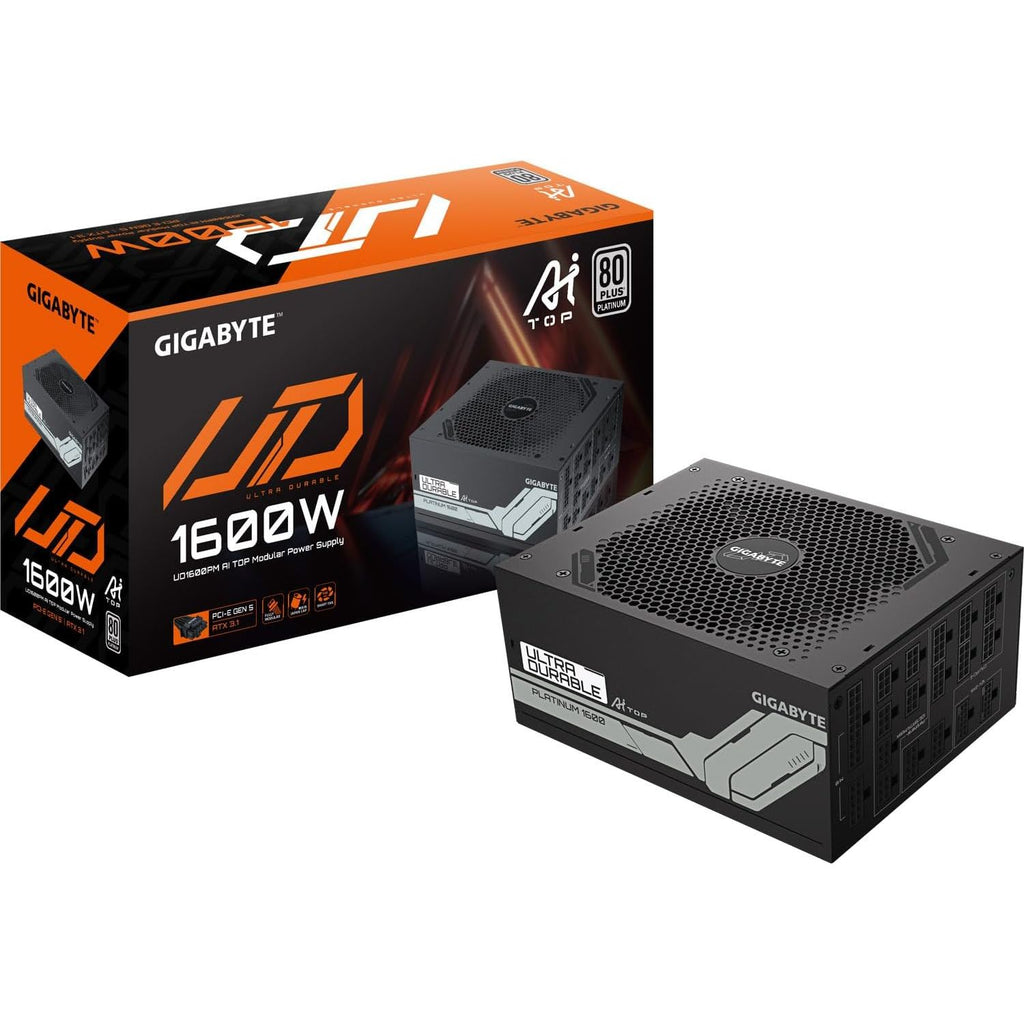

What's in the Box

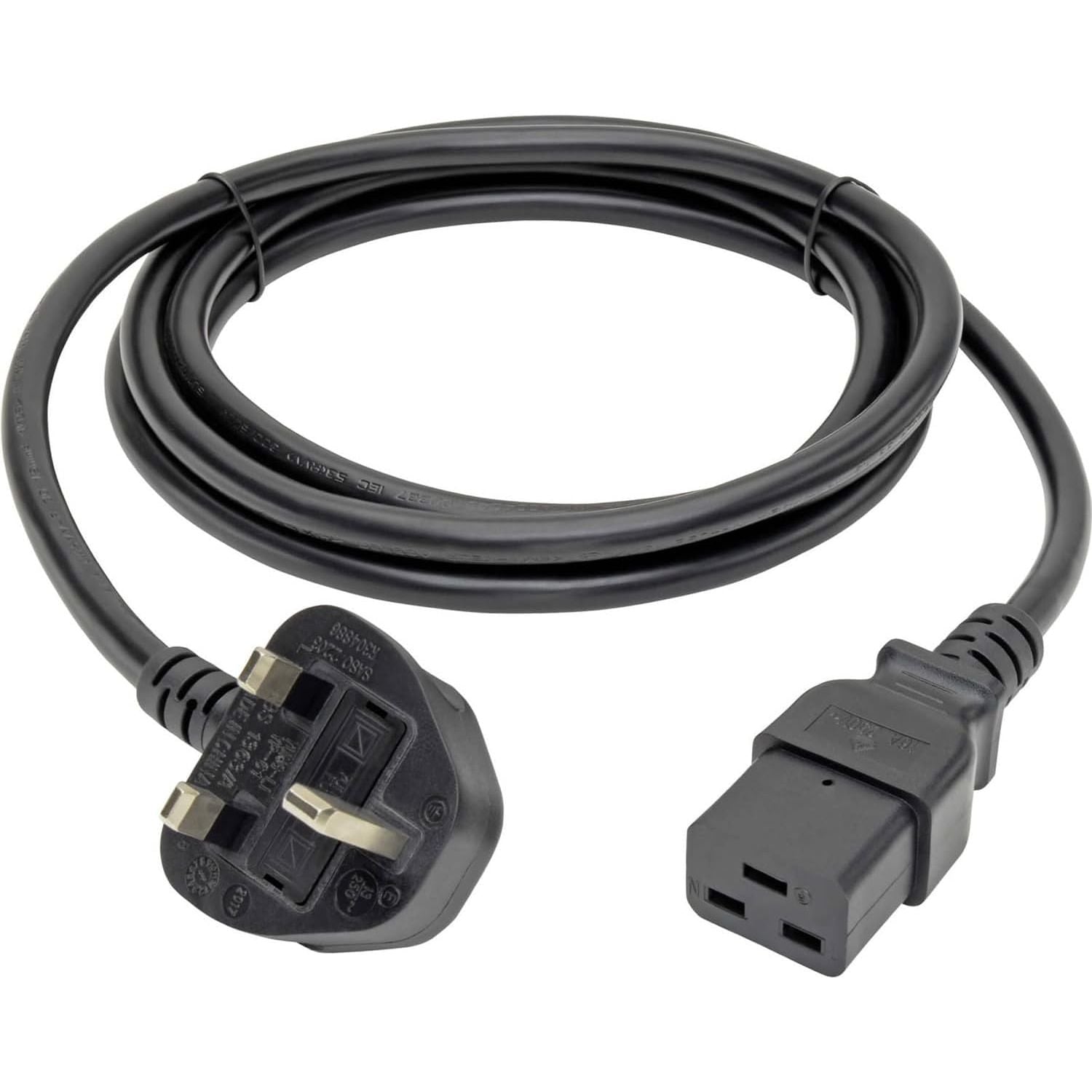

• Gigabyte UD1600PM PG5 AI TOP Power Supply Unit (UK plug)

• Modular cable set

• User manual

• Warranty information
