Description

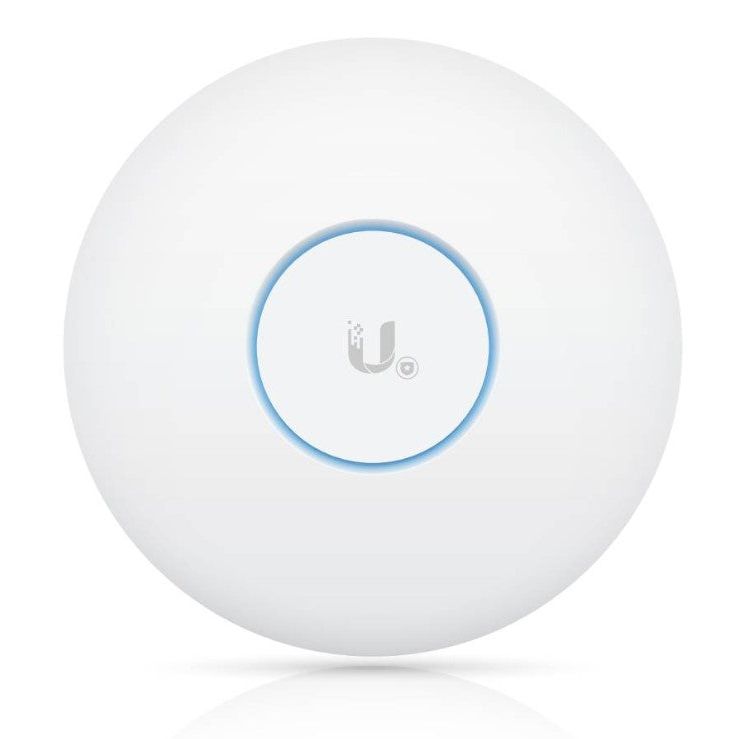

UniFi AC SHD – safety combined with performance
The UAP-AC-SHD by Ubiquiti is the first 802.11ac Wave 2 access point with extended protection. Thanks to RF monitoring, it is an excellent solution for hospitals, banks, universities and other facilities which collect confidential information.
Ultramodern solutions
The airView tool analyzes all available RF channels without regardless of its performance or customer activity disruption. AirTime analyzes Wi-Fi packets to create a real-time visualization, allowing UniFi AC SHD AP to automatically select the best channel for optimal performance of the entire installation.
Technology
UniFi AC SHD AP works as WIPS (Wireless Intrusion Prevention System) and WIDS (Wireless Intrusion Detection System). MU MIMO 802.11ac Wave 2 technology allows it to communicate with multiple clients at the same time, significantly increasing user bandwidth and overall standard of service.
UniFi
UniFi comprises a scalable, comprehensive system of devices covering many locations around the world – all controlled by a single interface available via Internet or local network.
Comparison
| UAP‑AC‑PRO | UAP‑AC‑HD | UAP‑AC‑SHD | |
| Dimensions | ∅196.7 x 35 mm | ∅220 x 48.1 mm | ∅220 x 48.1 mm |
|---|---|---|---|
| Environment | Indoor/Outdoor | Indoor/Outdoor | Indoor/Outdoor |
| 2.4 GHz Radio Rate | 450 Mbps | 800 Mbps | 800 Mbps |
| 5 GHz Radio Rate | 1300 Mbps | 1733 Mbps | 1733 Mbps |
| PoE Mode | 802.3af PoE/802.3at PoE+ | 802.3at PoE+ | 802.3at PoE+ |
| Ports | (2) 10/100/1000 Ethernet | (2) 10/100/1000 Ethernet | (2) 10/100/1000 Ethernet |
| Wi‑Fi Users | 200 Users | 500+ Users | 500+ Users |
| airTime | ✕ | ✕ | ✓ |
| airView | ✕ | ✕ | ✓ |
| WIPS | ✕ | ✕ | ✓ |
| Mechanical | |
|---|---|
| Dimensions | Ø220 x 48.1 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 700 g (1.5 lb) With mount: 830 g (1.8 lb) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | PoE+ |
| Power supply | UniFi PoE Switch* *5-packs do not come with PoE adapters. |
| Supported voltage range | 44—57 VDC |
| Max. power consumption | 20W |
| Max. TX power 2.4 GHz 5 GHz |
25 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
| Max. data rate 2.4 GHz 5 GHz |
800 Mbps 1.7 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
6 dBi 6 dBi |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Ambient operating temperature | -10 to 70° C (14 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, cULus |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ac-Wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w (PMF) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Power save | Supported |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 1000+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
